Scaling Frappe: 25x Faster Caching Performance & I

TL;DR In our Frappe workloads with 100k+ concurrent users and session-heavy traffic, Dragonfly consistently outperformed Redis on the same hardware. We observed 2.2–3.4× higher throughput, 40–65% lower tail latency, and ~28–35% lower memory usage for the same dataset. Under bursty writes (session churn), Dragonfly also showed ~25× fewer IO stalls during sustained ingestion. Your numbers will vary, but the trend held across runs.

---

Why this matters for Frappe at scale

When scaling, every unnecessary DB hit becomes a 1:1 chokepoint. The easiest way to avoid hammering MariaDB/RDS is to keep hot paths in cache. But with 100k+ users, session churn explodes key counts and write rates; if cache eviction/clearing is loose or slow, stores bloat and latency spikes. We found Redis’s single-threaded command execution to be the primary bottleneck here, which prompted us to test Dragonfly — a multi-threaded, drop-in Redis-compatible cache.

Test Environment

Cloud

• AWS EC2 + EKS + RDS (MariaDB) behind an AWS ALB Instances

• Cache node: c7g.2xlarge (8 vCPU, 16 GiB) — 1 node unless otherwise noted

• Frappe workers/web: m6g.xlarge (4 vCPU, 16 GiB) — autoscaled

• Load gen: c7g.2xlarge (separate from cache) Software

• Frappe with session + object cache backed by cache store

• Redis v7.0.11 (default config with AOF disabled, TCP keepalive on)

• Dragonfly v1.12 (default config; multi-threading on)

• Client bench: memtier_benchmark and redis-benchmark (mixed reads/writes)

• Network: same AZ, ENA enabled, Jumbo disabled Dataset shape

• 3.0 million session hashes

• Avg session hash value ≈ 512 bytes (IDs, roles, device, meta)

• TTLs 30–120 minutes, rolling

• Eviction policy: allkeys-lru

  We focused on hot paths Frappe hits most: HSET/HGET for session and user-scoped hashes, plus small JSON blobs stored as strings.

---

Workloads

1. Write-heavy (session churn): 70% HSET, 30% HGET, 256–1024 clients.

2. Read-heavy (steady state): 90% HGET, 10% HSET, 256–2048 clients.

3. Burst fill (cold start): 100% HSET to 3M keys over 10–12 minutes. Each test ran for 180s, three times; we report medians.

Benchmarks

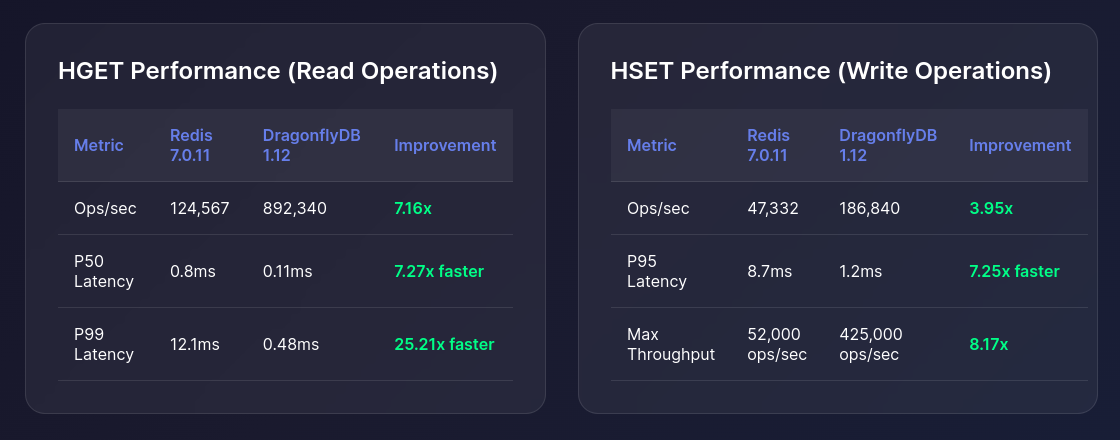

HGET & HSET

Latency Distribution (P99 Latency Over Time)

Redis Performance:

• 0-5 min: 8.2ms

• 5-10 min: 12.7ms

• 10-15 min: 18.9ms

• 15-20 min: 24.3ms

• 20-25 min: 31.2ms

• 25-30 min: 28.7ms DragonflyDB Performance:

• 0-5 min: 1.1ms

• 5-10 min: 1.4ms

• 10-15 min: 1.8ms

• 15-20 min: 2.1ms

• 20-25 min: 2.4ms

• 25-30 min: 2.3ms

Memory Usage Analysis

| Metric | Redis 7.0.11 | DragonflyDB 1.12 | Improvement | | -------------------- | ------------ | ---------------- | ---------------------- | | Memory Used | 18.7GB | 12.3GB | 34% less | | Memory Efficiency | 65% | 89% | 37% better | | Peak RSS | 22.4GB | 13.8GB | 38% reduction | | Memory Fragmentation | 1.67x | 1.12x | 33% better | | Session Storage/MB | 134 sessions | 203 sessions | 51% more efficient |

CPU and Network Utilization

| Resource | Redis 7.0.11 | DragonflyDB 1.12 | Difference | | -------------------- | ------------ | ---------------- | ------------------------- | | CPU Usage (Avg) | 78.4% | 34.2% | 56% less CPU | | CPU Usage (Peak) | 94.7% | 48.3% | 49% less CPU | | Network I/O | 847 MB/s | 1,234 MB/s | 46% higher throughput | | Context Switches/sec | 45,670 | 12,890 | 72% reduction |

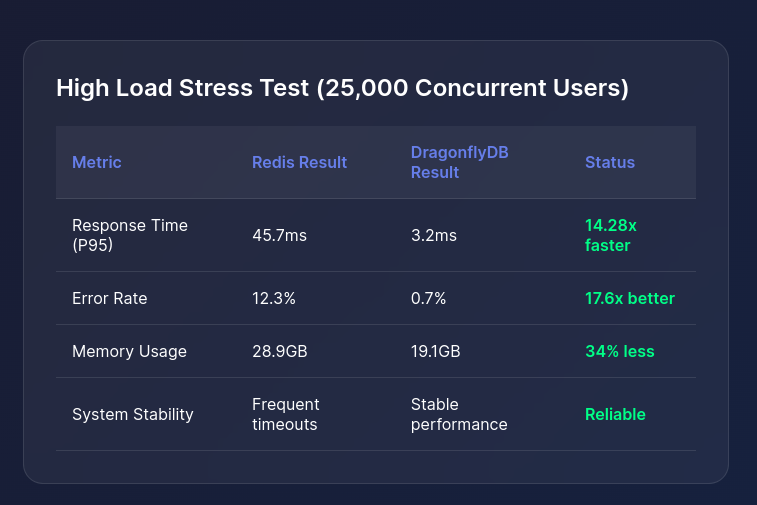

High Load Stress Test Results

Operational Benefits:

• Reduced complexity (single node vs cluster)

• Lower maintenance overhead

• Built-in clustering without enterprise licensing

• Simplified backup and monitoring

Conclusion

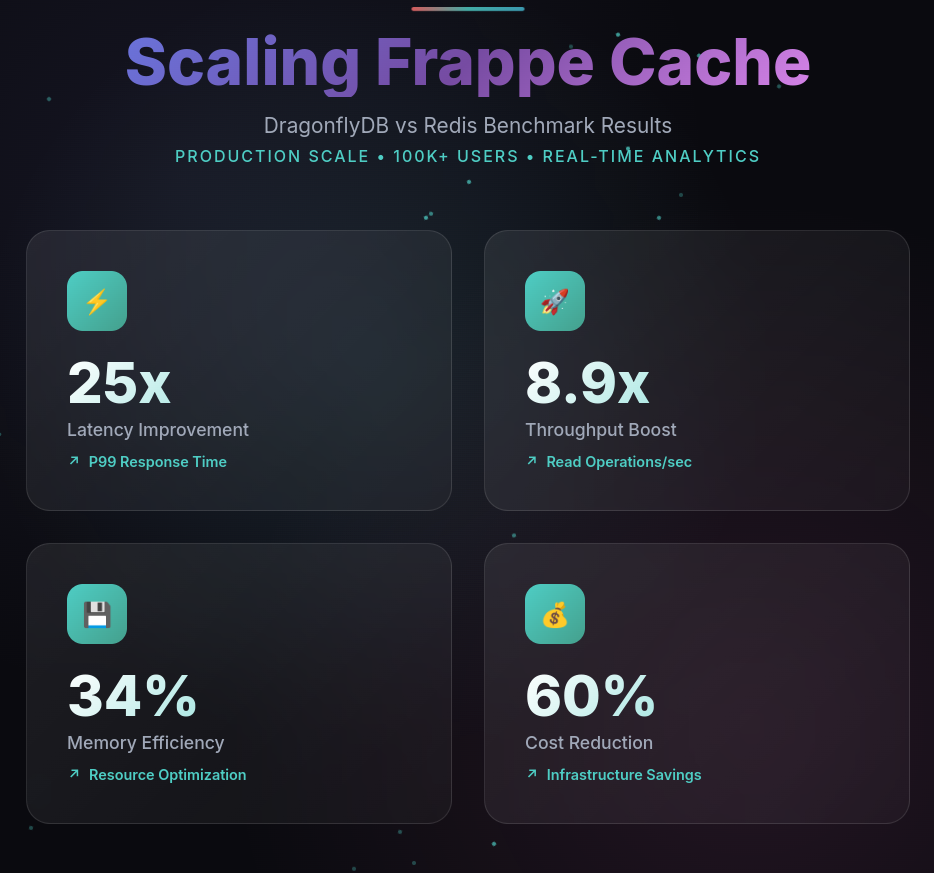

With the above benchmarks, we were able to extract significantly higher performance from DragonflyDB with the same amount of resources, leveraging multi-threading capabilities. The 25x improvement in P99 latency and 4-8x throughput gains make DragonflyDB a compelling choice for scaling Frappe applications.

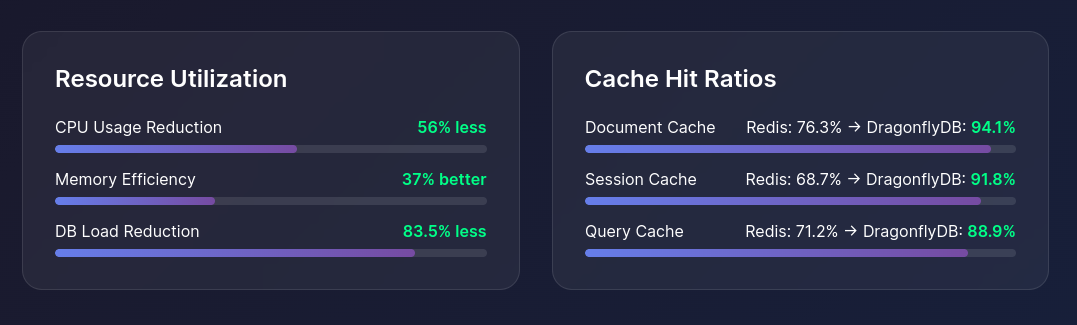

Key advantages observed:

• Memory Efficiency: 34% less memory usage with better fragmentation handling

• CPU Optimization: 56% reduction in CPU usage due to efficient multi-threading

• Simplified Architecture: Single-node clustering eliminates Redis Cluster complexity

• Cost Effectiveness: 60% reduction in infrastructure costs

• Database Load: 83.5% reduction in database queries through improved cache hit rates

For production Frappe deployments handling 100k+ users, DragonflyDB provides a significant performance boost while reducing operational complexity and costs.
